Ultra compact & audiophile
advanced amplifier module
More power and further improved performance

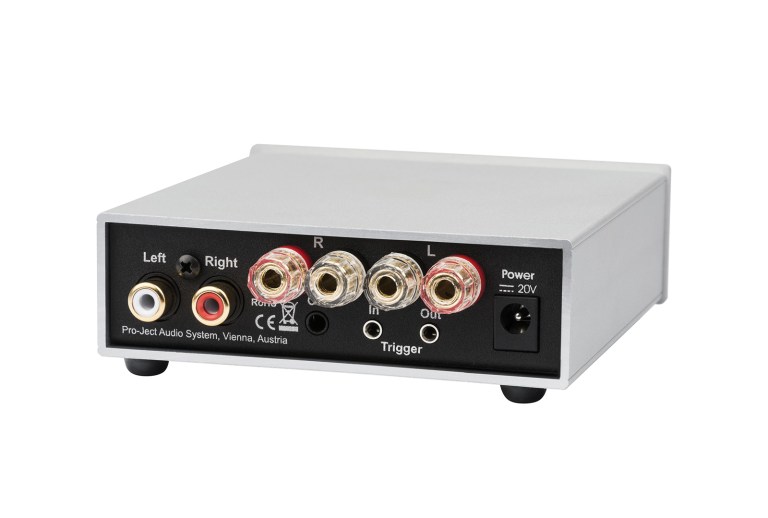

Stereo input (RCA)
Isolated speaker sockets
Suitable for banana/spade/pin/bare wire
Trigger input
Trigger output for further Amp Box S2
Metal casing protects against vibration and interference

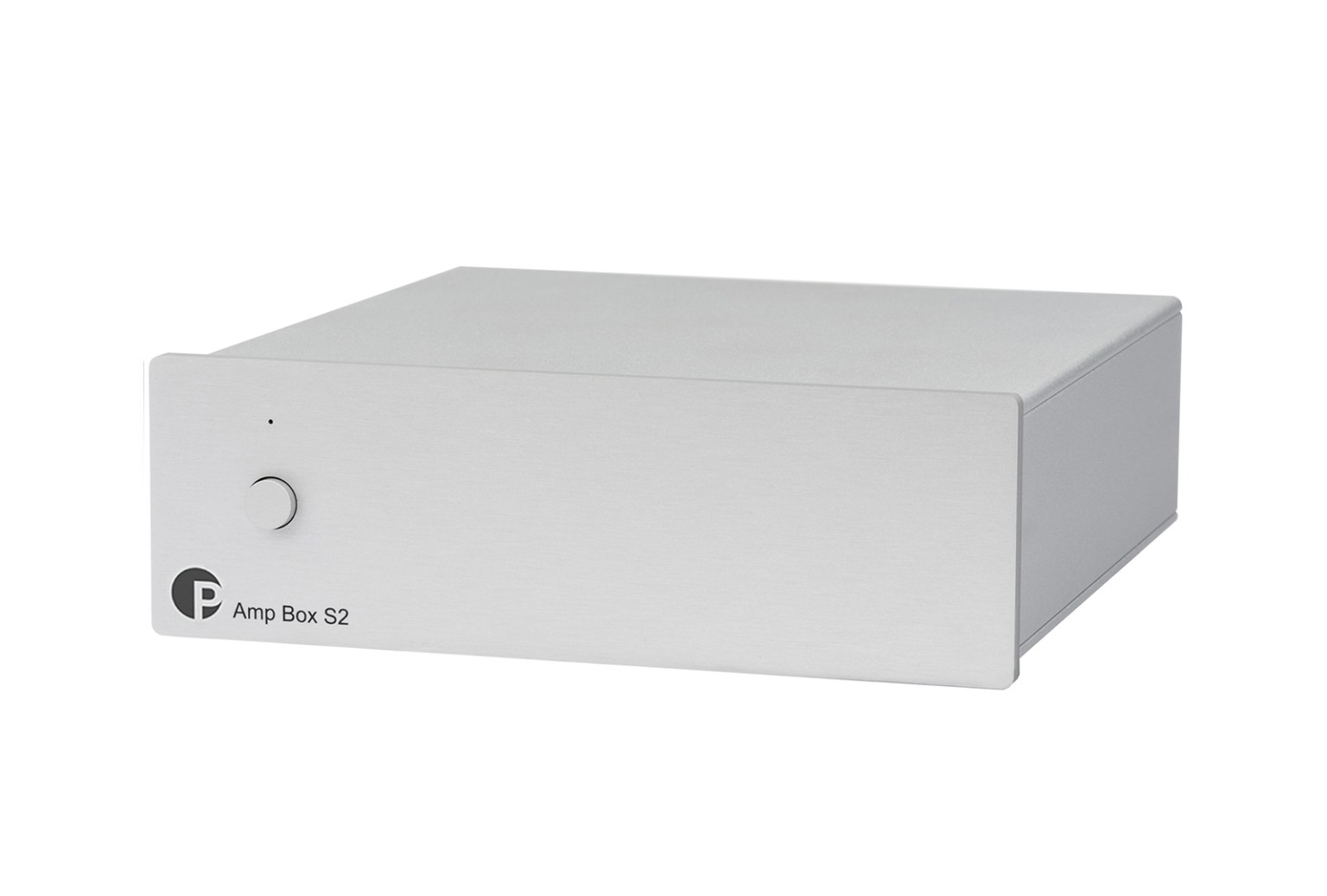

On/Off front-sided
Available in silver or black
Power output 2 x 23 W / 35 W at 8 ohms/4 ohms (both channels driven)
Frequency response 5 Hz – 20 kHz (+ 0.2 dB, – 0.2 dB)
Channel separation >-55dB bei 20kHz
Noise floor >-100dBA
THD <0.18% bei 10 W
Gain 31 dB
Pre in 1 pair RCA/phono sockets
Bypass Output Jack socket 3,5mm stereo
Input sensitivity 330 mV
Input impedance 20 kohms
Speaker connectors 4 mm banana plugs, spades connectors or naked wire
Trigger 12V DC switching voltage, 2-pole co-axial, 2.5mm co-axial jack
Outboard power supply: 20V/3A DC (peak 7A DC), suitable for your country’s mains supply
Power consumption 3A DC, <1W in standby
Dimensions W x H x D with sockets 103 x 37 x 136 mm
Weight 385 g without power supply
