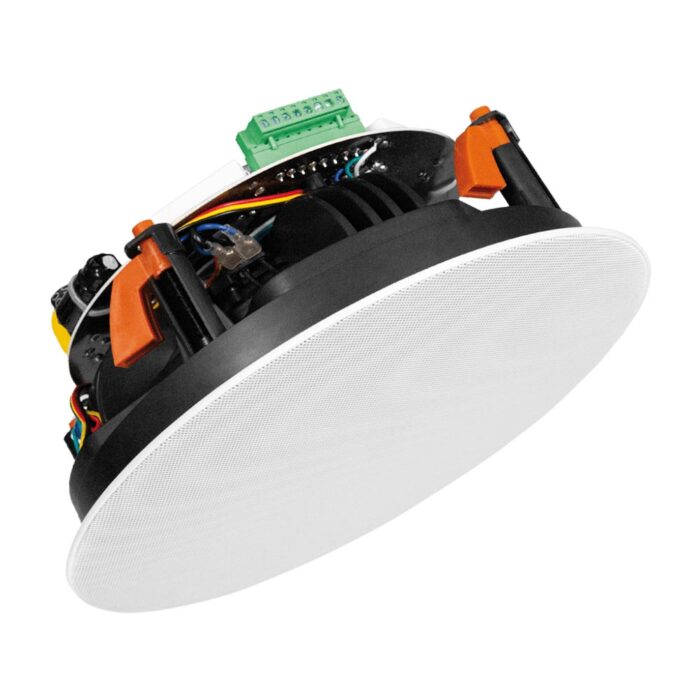

The CELO8S is the next step in our journey to provide an impeccable musical atmosphere. This 8” ceiling subwoofer is fitted with a stiff and light aluminum membrane, minimizing ceiling vibrations and resulting in energetic depths from above, while the open back design enables the CELO8S to reproduce low frequencies in the most natural way possible. Its integrated stereo crossover enables you to effortlessly connect your satellite speakers, resulting in the absolute finest full-range sound experience in the most efficient way possible.
To overcome the architectural challenges of the most luxurious interior designs, the CELO8S is fitted with our SlimLine™ grill design with an exceptionally thin border of only 1 mm and a minimized grill depth, extruding merely 3.2 mm from the ceiling surface. In addition, the grill is completely paintable, making the speaker disappear without sacrificing any sound quality. This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly simple and reliable.
Without the speaker grill installed, it’s clear for anyone to see that the CELO8S is made by using only the highest quality materials, guaranteeing an unsurpassed sound experience. This results in true to nature sound reproduction for a warm and detailed sound with an RMS power of 50 Watt per channel and 100 Watt when connected in parallel.
When installed with accompanying satellite speakers, the volume of these satellites relative to the subwoofer can be increased and decreased by 3 dB, according to the installation setup and preferred sound.
Depending on the acoustical properties of your room and placement of the subwoofer, the sub can be better integrated into your room when switched to either 0° or 180° by adjusting the phase switch. We recommend 0° when all speakers are mounted in a flat wall or ceiling.
QuickFix™ mechanism
Lockable Phoenix terminal block connectors
SlimLine™ grill with 1mm thin border
8″ low-frequency driver
Neodymium magnets for grill fixation
Integrated stereo crossover
Phase switch (0° – 180°)
Volume switch (- 3dB / + 3dB)
SYSTEM SPECIFICATIONS
Max. Power 2 x 100 W
RMS Power 2 x 50 W
Impedance 8 Ω
Sensitivity (1W/1m) 83 dB
Sound Pressure (Max. W/1m) 103 dB
Drivers 8” Aluminium membrane
Frequency Response (± 3 dB) 45 Hz – 200 Hz
Crossover Type Passive built-in
Frequency 200 Hz
Connectors Input 4-pin Euro Terminal Block (Pitch – 3.81 mm)
Output 8-pin Euro Terminal Block (Pitch – 5.08 mm)
PRODUCT FEATURES
Dimensions 275 x 120 mm (Ø x D)
Weight 2.75 kg
Construction ABS
Front finish Thin edged white grill (RAL9003)
Cut-out measurement 250 mm (Ø)
Built-in depth 117 mm
Mounting & handling 4 Screw quick-fixing mechanism
Operating temperature -20 °C ~ 60 °C
Colours Black frame & white grill
Accessories Included GLC08/W – White grill (RAL9003)
Optional GLC08/B – Black grill (RAL9005)
GLC08/P – Paintable grill
