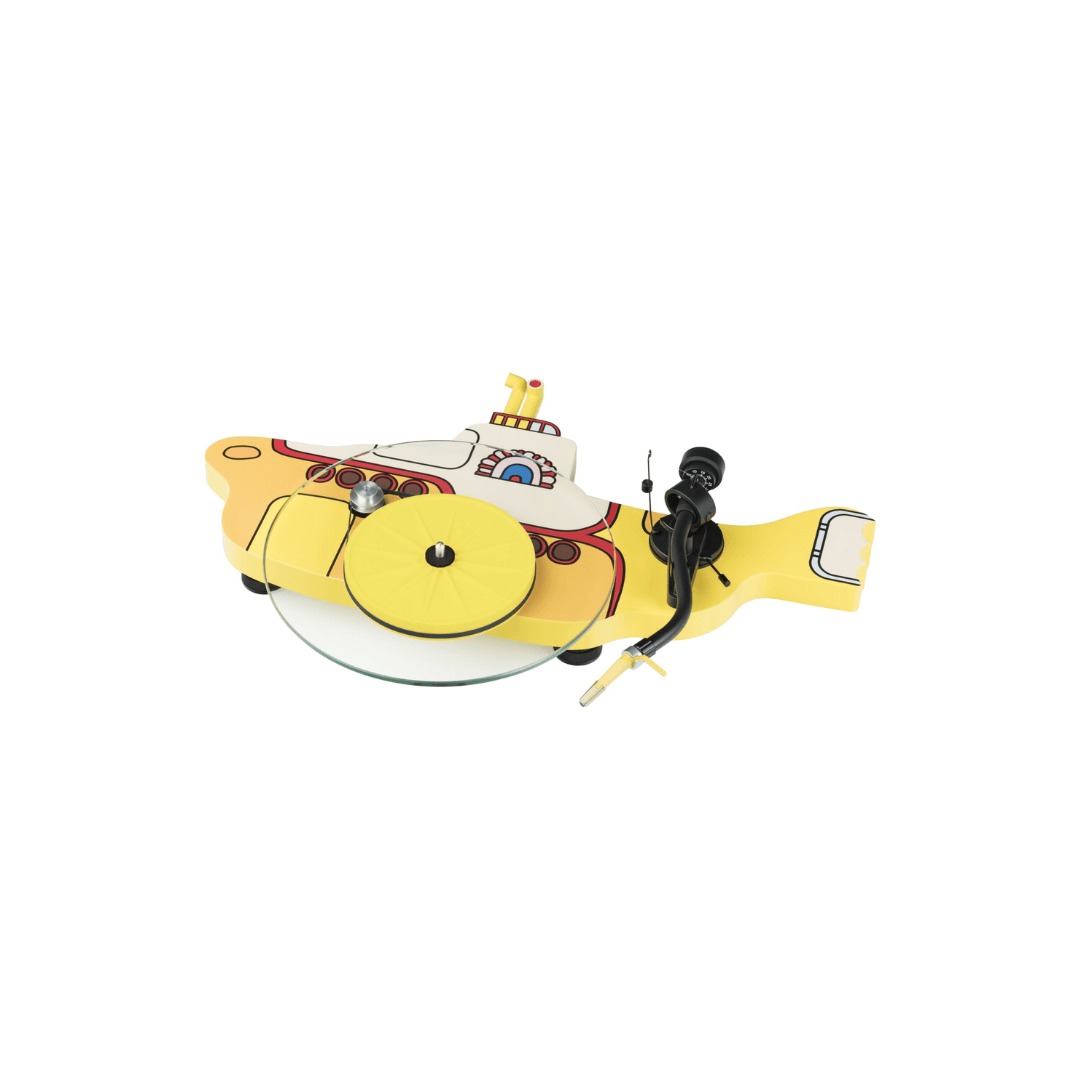

The Beatles Yellow Submarine

As big fans of the work of the Beatles, we are proud to introduce this collaboration and number five of our Beatles series. The Yellow Submarine turntable is the most distinctive of the five yet. With its unique shape it is sure to attract many looks and loves by Beatles fans. By adding a glass platter to the turntable we made sure that this masterpiece won‘t get covered and can be enjoyed in full glory.

ԳՆԻ ՀԱՐՑՈՒՄ

Unique special Yellow Submarine look
Belt-drive with synchronous motor

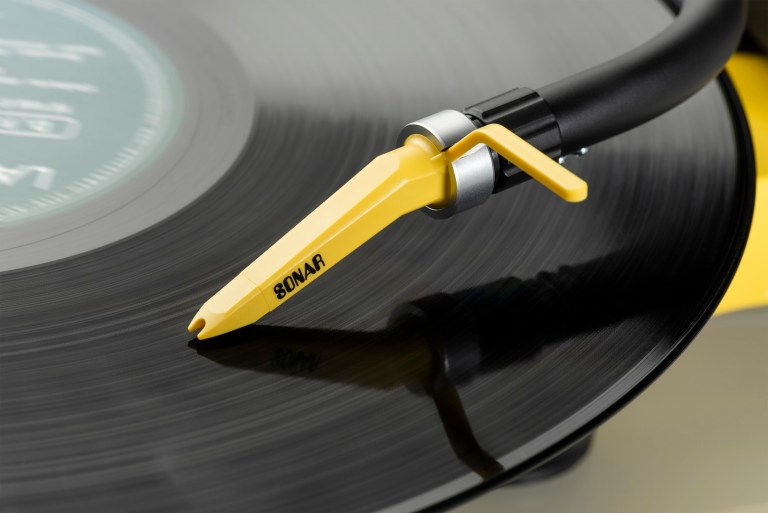

Ortofon Concorde quality pickup
Vibration absorbing feet
Glass platter
Rigide MDF chassis
Highly precise and light aluminium tonearm
Saphire-tonearm bearing
Gold-plated contacts
Silicon belt with optimum dampening
Hand-made in Europe
Speed 33, 45 (manual speed change)
Principle Belt drive
Speed variance 33: 0.60% 45: 0.50%
Wow & Flutter 33: 0.19% 45: 0.17%
Platter 300 mm glas with felt mat
Main bearing Brass with teflon plate
Tonearm 8.6” aluminium
Effective arm length 218.5 mm
Output voltage at 1000 Hz, 5cm/sec 5 mV
Frequency response 20-20.000 Hz ± 1.5 dB
Stylus type Spherical
Internal inductance 450 mH
Recommended load restistance 47 kOhm
Recommended load capacitance 200-500 pF
Cartridge weight 19g
Overhang 18.5 mm
Effective tonearm mass 6.0 g
Counterweight for mass 2 – 5.0 g
Tracking force, recommended 1,75g (17,5mN)
Power consumption 4.5 Watt max
Dimensions 500 x 120 x 400 mm (WxHxD)
Weight 4.5 kg net
