Frequency Response [- 10dB] – 63Hz-19kHz
Sensitivity (1W @ 1m) – 91dB
Max SPL -112dB
RMS Power -150W
Impedance – 8ohm
HF Type -1” v.c. – 1” exit Compression Driver
Horn Type – Symmetric
Directivity (HxV) – 90°x60°
Crossover Frequency – 4.6kHz
LF Diameter – 8″ – 1.5” v.c.

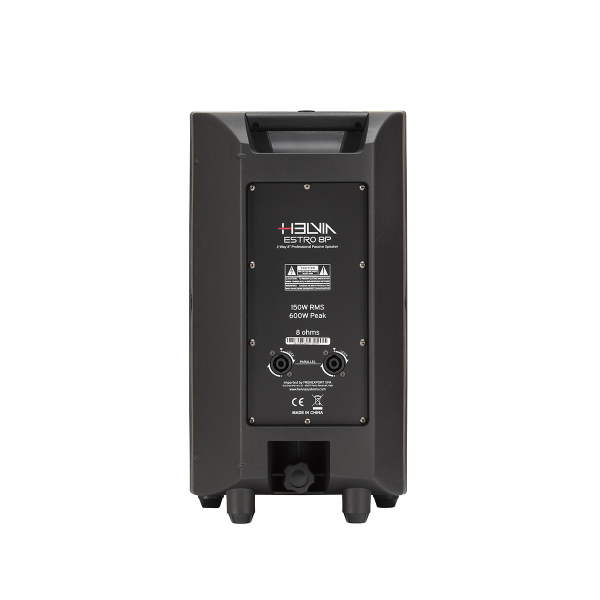

Input – 1 x 2-Poles Speakon connector
Out -1 x 2-Poles Speakon connector
