Product type – PA Complete Systems
Type – Powered
Color – Black
Max. SPL (Peak) – 127 dB
Frequency response (-10dB) – 37 Hz – 20000 Hz
Dispersion (H x V) – 120° x 30 °
Total Height – 2052 mm
Weight – 36,2 kg
Features – 6 channel mixer, App Control (Easy + Expert Mode), Bluetooth Audio Streaming, Cardioid column, Footswitch Input, On-board effects + dynamics, SysLink® (cascading of 2 systems)

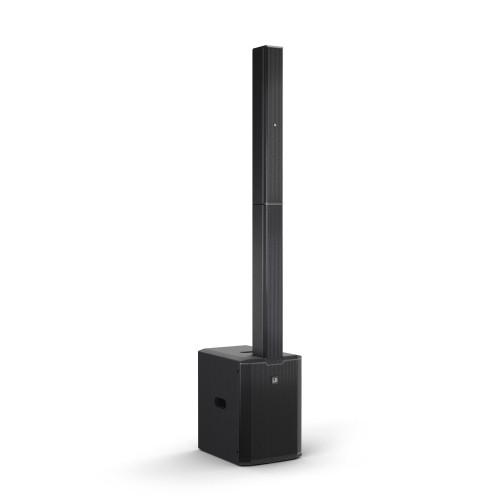

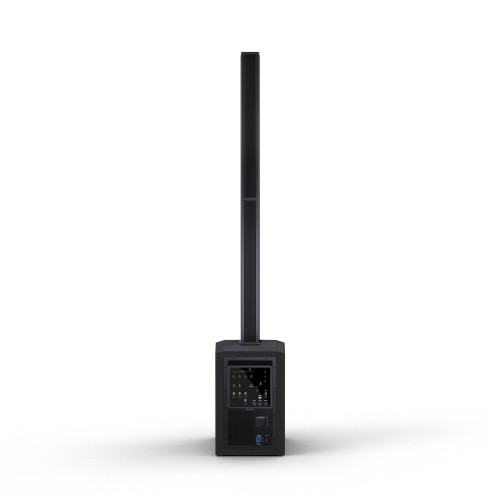

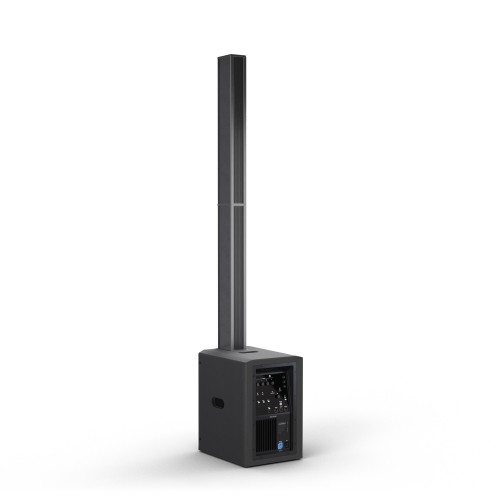

MAUI® 28 G3 MIX
982,000 AMD
2060 W Peak-power and 127 dB max. SPL
Powerful and deep bass reproduction with 12″ subwoofer

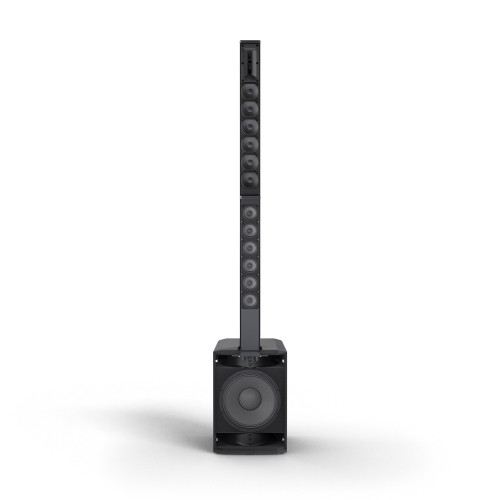

Balanced mids thanks to 12 x 3.5″ full-range speakers
Precise and silky highs with 2 x 1″ high-frequency drivers
Digital 6-channel mixer with on-board effects and footswitch input
Free App with Easy and Expert mode for remote adjustments via smartphone and tablet (optional)
SysLink® for connecting two MAUI G3 MIX to double the mixer channels
Cardioid column for controlled low-mid and midrange sound dispersion
BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
Optimised bass-reflex design improves bass response and reduces air flow noise
Can be combined with an additional MAUI® 28 G3 subwoofer for increased low end or for cardioid subwoofer setups
Dynx® DSP (Gen. 2) for distortion-free sound even at maximum volume
Wireless streaming via Bluetooth®
Automatic setup detection for quick and easy operation

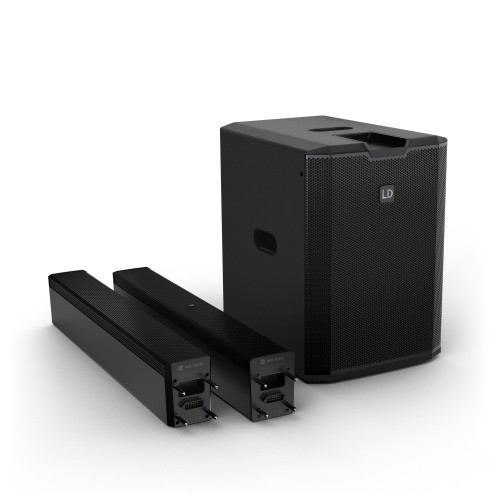

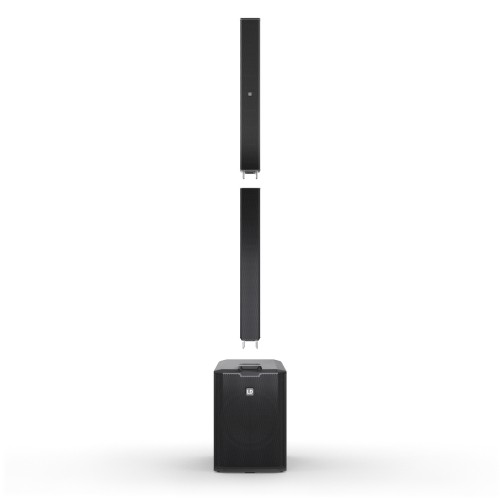

Fast and simple assembly without stands or cables
Rugged birch plywood subwoofer housing with durable polyurea-coating
Lightweight, powder-coated aluminium column housing
Specification
Description
Compact, powerful and easy to use – a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI Series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you’re all set!This applies in particular to the MAUI G3 MIX versions, which feature integrated digital 6-channel mixers. All components are integrated and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via a free MAUI app (available on iOS or Android smartphones and tablets) is also included.The MAUI 28 G3 MIX delivers a huge, powerful, and precise sound with 1,030 W RMS power (2,060 W peak). It is suitable for various applications, for example as a main PA for singer-songwriters and small bands, a sound system for mobile DJs and formations, or a PA system at weddings, corporate events, and more.The built-in 6-channel mixer adjusts to the user’s preferences through the Easy and Expert Modes. Users can choose between intuitive 3-band EQs or more advanced 5-way full parametric control. A comprehensive effects section provides the full range of reverb, delay and dynamics processing options. Users can wirelessly control all mixer and effects settings through the app.For stereo applications, two MAUI 28 G3 MIX units can be linked via SysLink®. In this setting, twice the number of mixer channels are available, and with the REMOTE button, all channels can even be controlled from one system. With its sleek and elegant design, the MAUI 28 G3 MIX looks extremely appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5” midrange drivers and 2 x 1” tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide – in front of the tweeters – carries the high frequencies right to the back of the audience areas.
