RESPONSE: – 20-20,000 Hz
POWER SUPPLY: – 230/115 V AC, 7 W
DIMENSIONS: – 433 x 45 x 155 mm depth. 1 U 19” rack

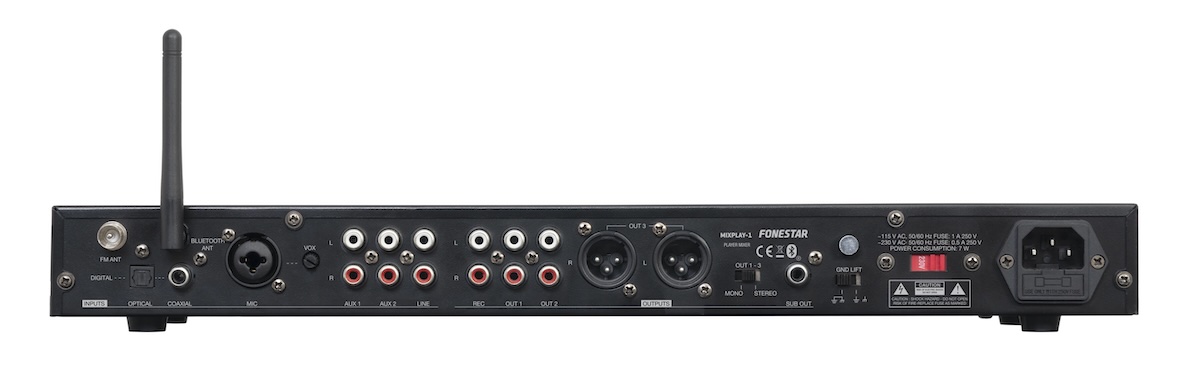

INPUTS: 1 x MIC balanced Micro. Combo (XLR + 6.3 mm) connector. Signal level 30 mV RMS (-30 dBV) / 600 Ω (@ balanced and unbalanced output 1 V RMS)
2 AUX and LINE. 2 x RCA connector. Signal level: 350 mV RMS (-9 dBV) / 47K Ω (@ balanced 1 V RMS output). Signal level: 750 mV RMS (-2.5 dBV) / 47K Ω (@ unbalanced output 1 V RMS)
1 x digital audio (optical or coaxial). Connectors, TOSLINK and RCA. Priority of the optical input over the coaxial input
OUTPUTS: OUT 1 and OUT 2 unbalanced output. 2 x RCA connectors. Signal level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω
OUT 3 balanced output. 2 x XLR connectors. Output level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω
1 x REC. 2 x RCA connectors. Signal level. 1 V RMS (0 dBV) / 1K5 Ω
1 x Subwoofer. RCA connector. Signal level: 1 V RMS (0 dBV) / 1K5 Ω
1 x Headphones. 6.3 mm stereo connector.
