458,000 AMD

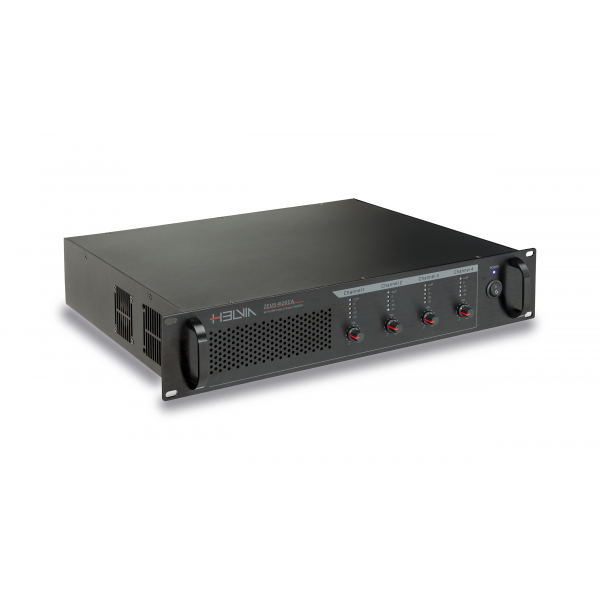

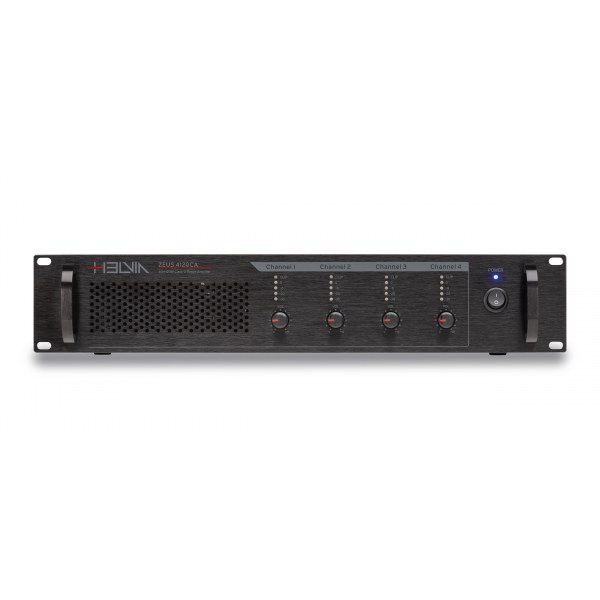

4x120W Multipurpose Power Amplifier
100V RMS Output Power – 4x120W
70V RMS Output Power – 4x120W
4-16Ω RMS Output Power – 4x120W @ 4Ω
Input Sensitivity – 1V/Gain max @ 0.775V
Input Impedance – 20KΩ ±10%
Frequency response – 80-20kHz/ 400Hz-20kHz
Damping Factor – >300 @ 100 Hz
Crosstalk -＞70dB
S/N Ratio -＞85dB
Power Requirements – AC 230V
Power Consumption (Average/Peak) – 600W

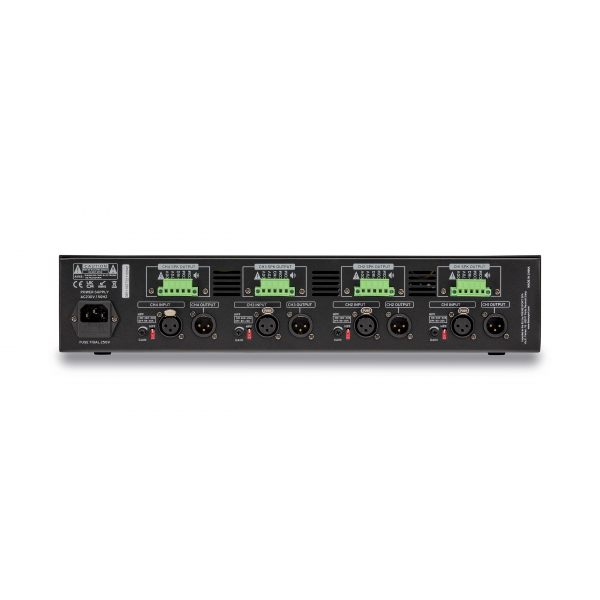

Input Connectors – 3-Pin Female XLR
Output Connectors – 5-Pin Phoenix
Ch Output Connectors – 3-Pin Male XLR
Helvia Zeus CA series is designed for the world of small-medium commercial audio systems, both on 70V or 100V constant voltage lines, and low-impedance lines from 4 to 16 ohm. It offers 1, 2 and 4 channels Class-D amplifiers with 120W, 240W and 350W RMS powers.
Each channel is independent and equipped with its own line transformer, therefore it is possible to choose between 70/100V or 4-16 ohm low-impedance for each of them, offering maximum versatility according to the specific needs of each zone.
| Brand |
HELVIA |
|---|
