The CELO series is AUDAC‘s first High-end slim ceiling speaker series, consisting of four models which can guarantee an optimal experience for every situation and application. The CELO8 is the largest 8” model of this series. Due to its slim grill design with a very thin border of only 1 mm and a limited grill depth which extrudes from the ceiling surface by only 3.2 mm, these speakers will become nearly invisible when mounted. To make them blend in even more, the grill can be painted in the same color as the surrounding surface or an optional black grill (GLC08/B) will provide seamless integration in dark environments.

This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very simple, but still reliable enough for keeping the grill in place during the complete lifetime of the loudspeaker. When the grill is removed, it’s clear for anyone to see that the CELO speakers are made by using only the highest quality materials, guaranteeing an unsurpassed sound experience.

One 1” aluminum cone tweeter is held in place by an acoustically optimized arm in front of an 8” aluminum cone woofer. Together with the crossover network which is made of high-quality components, this results in true to nature sound reproduction for a warm and detailed sound with an RMS power of 80 Watt.

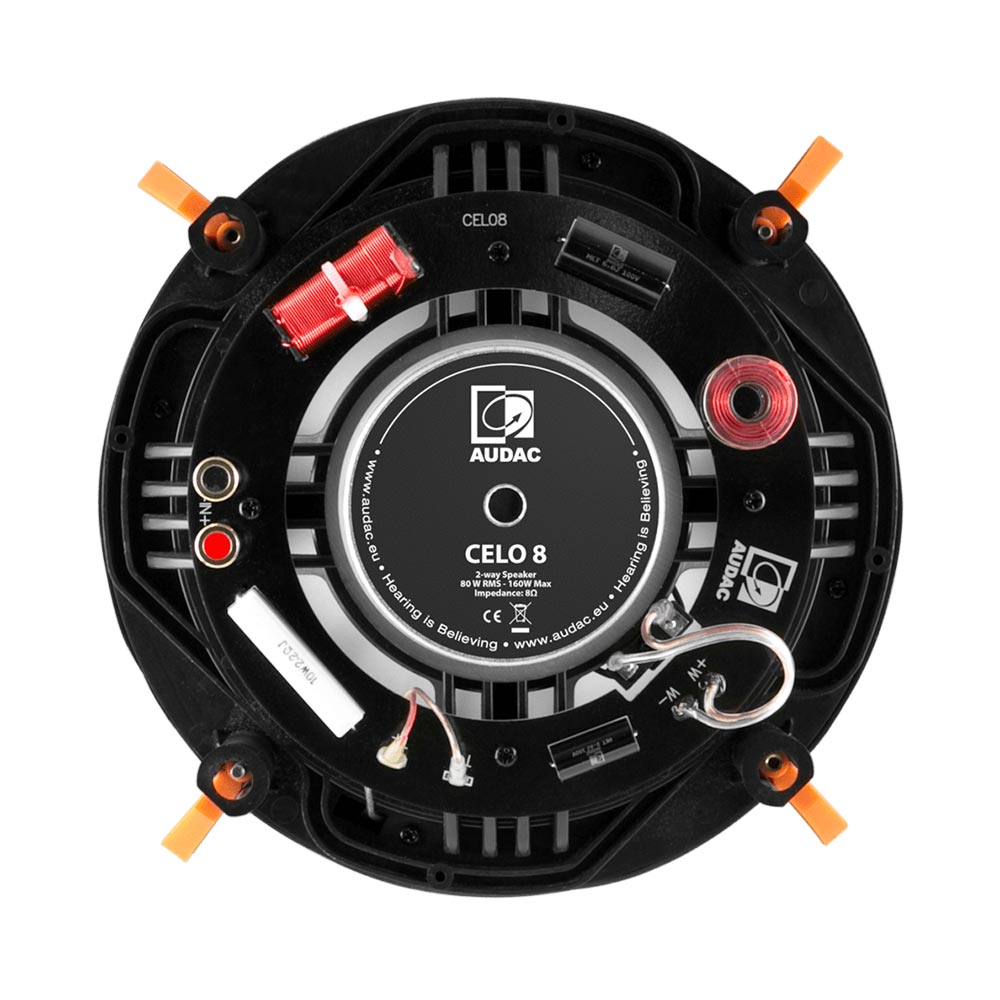

To guarantee a lifetime stability, secure mounting and easy installation, the loudspeaker connection is made using Gold plated spring clamp connectors. The mounting of the loudspeaker into the ceiling should be done by a quick-fixing mechanism which can be tightened by four screws and the front grill is held into place by neodymium magnets.
QuickFix mechanism
Gold plated spring clamp Gold-Con™ connectors
SlimLine™ grill with 1mm thin border
8″ Aluminum cone woofer
Neodymium magnets for grill fixation
1″ Aluminum dome tweeter

SYSTEM SPECIFICATIONS
Speaker type 2-way coaxial
Max. Power 160 W
RMS Power 80 W
Impedance 8 Ω
Sensitivity (1W/1m) 89 dB
Sound Pressure (Max. W/1m) 108 dB
Connectors Gold-Con™ spring clamps
Frequency Response (± 3 dB) 46 Hz – 20 kHz
Range (-10 dB) 32 Hz – 20 kHz
Crossover Type Passive built-in
Frequency 3 kHz
Dispersion Conical 135°
Drivers HF 1” Aluminium membrane
LF 8” Aluminium membrane
PRODUCT FEATURES
Dimensions 270 x 118 mm (Ø x D)
Weight 2.250 kg
Construction ABS
Front finish Thin edged white grill (RAL9003)
Cut-out measurement 245 mm (Ø)
Built-in depth 115 mm
Mounting & handling 4 Screw quick-fixing mechanism
Operating temperature -20 °C ~ 60 °C
Colours Black frame & white grill
Accessories Included GLC08/W – White grill (RAL9003)
Optional WTR24 – 24W 100V line transformer
GLC08/B – Black grill (RAL9005)
GLC08/P – Paintable grill
