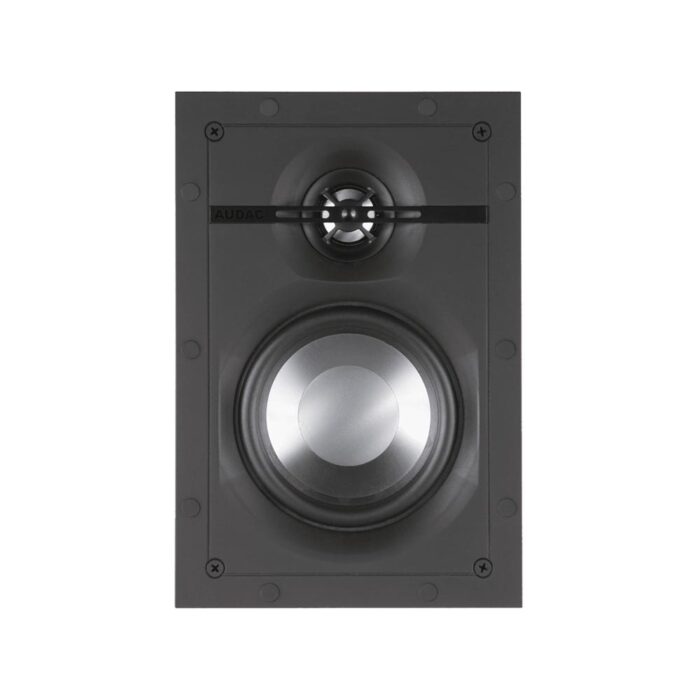

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The largest MERO6 consists of a 6” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network. An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phase-plug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound. An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. The grill is held in place using neodymium magnets, providing a quick and stable assembly. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.

QuickFix mechanism
Gold plated spring clamp Gold-Con™ connectors
SlimLine™ grill with 1mm thin border
1″ Dome tweeter
6″ Mid / low frequency driver

SYSTEM SPECIFICATIONS
Speaker type 2-way
Max. Power 120 W
RMS Power 60 W
Impedance 8 Ω
Sensitivity (1W/1m) 88 dB
Sound Pressure (Max. W/1m) 106 dB
Connectors Gold-Con™ spring clamps
Frequency Response (± 3 dB) 55 Hz – 20 kHz
Range (-10 dB) 44 Hz – 20 kHz
Crossover Frequency 3 kHz
Type Passive built-in
Dispersion Horizontal 160°
Vertical 140°
Drivers HF 1” Aluminium membrane
LF 6” Aluminium membrane (coaxial)
PRODUCT FEATURES
Dimensions 196.5 x 276.5 x 82 mm (W x H x D)
Weight 1.660 kg
Construction ABS
Front finish Thin edged white grill (RAL9003)
Cut-out measurement 174 x 254 mm
Built-in depth 78.5 mm
Mounting & handling 4 Screw quick-fixing mechanism
Operating temperature -20 °C ~ 60 °C
Colours Black frame & white grill
Accessories Included Cut-out template
GLM06/W – White grill (RAL9003)
Optional WTR24 – 24W 100V line transformer
GLM06/B – Black grill (RAL9005)
GLM06/P – Paintable grill
