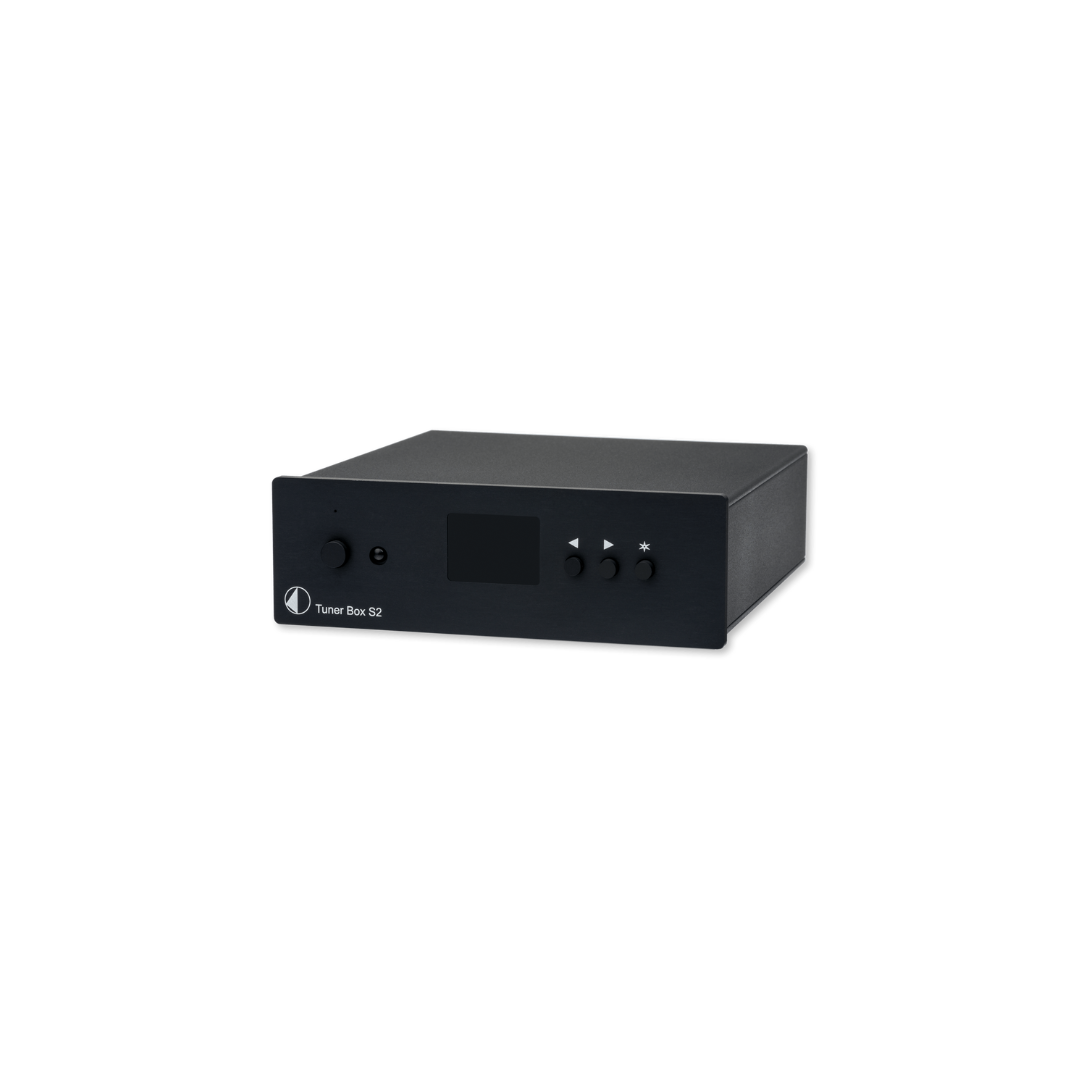

Pro-Ject Tube Box S2 Black UNI

This small FM-only tuner is fully loaded with high-quality audio and useful features. 99 station presets are more than enough to store your favourite radio stations. Tuner Box S2 can ideally be used in combination with other Box design components. For example, the Trigger In and Out allow you to remotelly power on and off the Tuner Box S2 via a Pre Box S2 Analogue. The included full functional IR-remote and the high-contrast dot-matrix display make this unit a delight to use!

REQUEST A QUOTE

Compare

Add to wishlist

Description
Additional information

Description

Micro-sized FM-Tuner
99 presets
Manual or automatic tuning
Adaptive noise reduction
High-contrast dot-matrix display
Display of frequency, preset number, centre of station, Stereo or Mono reception, signal strength
Trigger switching (on/off)
Full function IR remote control
Aluminium case in new S2 design
Available in silver or black
Tuning range FM-band 87,5 – 108MHz (50kHz steps)
Programmable presets 99
Frequency response 20Hz – 20kHz (±1dB)
S/N ratio 50dB
THD 0,05% / Δf 75kHz and f mod 1kHz
Stereo separation 30dB / Δf 75kHz and f mod 1kHz
Sensitivity 7dB / µV mono, 17dB / µV stereo /75 ohms
Antenna input 1 x co-axial DIN-socket (75 ohms) / US-model F-socket
Line-level output 1 pair RCA/phono sockets
Trigger in and out 2-pole coaxial 2,5mm jack
Output voltage 0,775Vrms
Outboard power supply 5V/1A DC; 110-240V/50, 60Hz
Power consumption 70mA DC, <1W in standby
Dimensions W x H x D (D with sockets) 103 x 37 x 112 (121) mm
Weight 315g without power supply
